A316-LS-MIC-V2

USB Streaming Microphone Evaluation Board with AI Noise Reduction

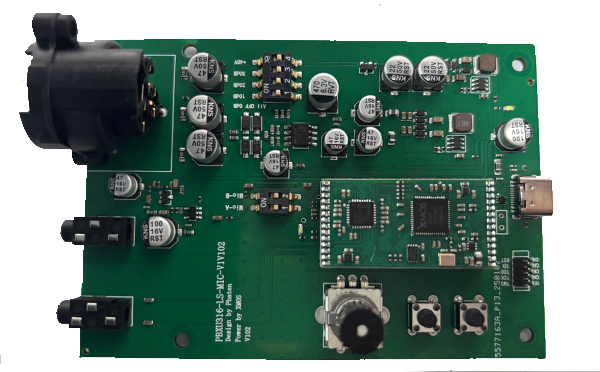

A316-LS-MIC-V2 USB AI Streaming Microphone Evaluation Board

  • A316-LS-MIC-V2 is a large-format (70x150mm) USB AI streaming microphone evaluation board based on XU316 chip design, providing professional streaming users with superior recording experience.
  • The evaluation board supports high-definition audio sampling with built-in AI noise reduction algorithms to effectively filter environmental noise while maintaining voice clarity.
  • Equipped with comprehensive audio processing system, including Compressor, Reverb effects, and 8-band EQ adjustment.

    🛒 Purchase Sample



  • Supports 48KHz-192KHz/24bit high-definition audio sampling
  • Signal-to-Noise Ratio SNR>101dB
  • Intelligent AI noise reduction function, effectively filters background noise
  • Comprehensive audio processing system (Limiter/Compressor/Reverb/10-band EQ)
  • Automatic gain control function
  • USB Type-C interface, 3.5mm headphone and microphone interface, wired microphone interface
  • RGB dynamic lighting effects (static/dynamic/music rhythm)
Type Title Download
User Guide A316-LS-MIC-V2 User Guide
AI Noise Reduction Effect A316-LS-MIC-V2 Noise Reduction Effect
Product Datasheet A316-CODEC-V1 USB AI Noise Reduction Microphone Module Datasheet
Firmware Name Firmware Version Release Date Firmware Description Download
USB AI Microphone Default Firmware 1.0.0 2025-07-14 Stereo, supports recording and playback. Compatible with desktop debug software (250617)
Type Description Download
Debug Tools AI Microphone Debug Tool Debug Tools
