XMSRC4392_VC1¶
4-Channel 192KHz ASRC and 768KHz SSRC Audio Sample Rate Converter with Integrated S/PDIF Transceiver and 2-Way I2S Master/Slave Interface
XMSRC4392 is a high-performance four-channel asynchronous audio sample rate converter based on XMOS high-performance chips, designed specifically for professional audio applications. Compared to the SRC4392's dual-channel SRC solution, this product offers double the processing capability while achieving significant optimization in both cost and performance.
- The product integrates two independent SRC modules (SRC_A and SRC_B), each capable of processing two audio channels, supporting ultra-high sampling rates up to 768KHz, providing exceptional flexibility and high-performance audio sample rate conversion for various digital audio systems.
- Supports SSRC sample rate conversion from 44.1KHz to 768KHz, ASRC sample rate conversion from 44.1KHz to 192KHz, and handles 16bit/24bit/32bit audio data processing.
- The product features outstanding audio performance metrics, with THD+N (@1kHz, 0dBFs) ≤ -130dB for both SSRC and ASRC, providing professional-grade audio processing solutions for audio equipment manufacturers.
XMSRC4392_VC1 Product Brief XMSRC4392_VC1 Datasheet
Purchase Sample
Features and Parameters¶
- Four-channel SRC audio sample rate conversion
- Dual SRC module architecture (SRC_A + SRC_B), each module processes 2 audio channels
- Can operate independently, capable of simultaneously processing 4-channel audio sample rate conversion
- Ultra-high sample rate conversion support
- SSRC supports sample rate conversion from 44.1KHz to 768KHz
- ASRC supports sample rate conversion from 44.1KHz to 192KHz
- Supports 16bit/24bit/32bit audio data processing
- High-performance specifications
- 4 S/PDIF multi-select input interfaces
- 2 S/PDIF output interfaces
- 2 I2S master/slave interfaces
- Compatible with AES3, IEC 60958, and EIAJ CP-1201 standards
Normal Operating Conditions
| Function | Minimum | Typical | Maximum | Unit |
|---|---|---|---|---|
| Operating Temperature | 0 | - | 70 | ℃ |
| 3.3V Operating Voltage | 3.0 | 3.3 | 3.6 | V |
| 1.8V Operating Voltage | 1.62 | 1.80 | 1.98 | V |
| 0.9V Operating Voltage | 0.855 | 0.90 | 0.945 | V |
Product Dimensions 13±0.1mm(L)X13±0.1mm(W)X0.8±0.1mm(H)
Documentation and Tools¶
| Type | Title | Download |
|---|---|---|
| Product Datasheet | XMSRC4392-VC1 Datasheet | [] |
| Reference Design | [] | |
| Application Manual | [] |
| Type | Description | Download |
|---|---|---|
| Debug Tools | Debug Tools |
Feature Comparison¶
| Feature | XMSRC4392 | SRC4392 | Advantage |
|---|---|---|---|
| SRC Channel Count | 4-channel | 2-channel | 2x processing capability |
| SRC Module Count | 2 independent modules | 1 module | 2x processing capability |
| Maximum Sample Rate (SSRC) | 768 KHz | 216 KHz | 3.5x performance improvement |
| Maximum Sample Rate (ASRC) | 192 KHz | 216 KHz | Equivalent performance |
| External Clock Reference | No external clock required | Requires external clock | Saves external crystal cost |
| Scalability | Expandable | Non-expandable | More flexible |
Application Scenarios¶
-
Professional Recording Studios
High-precision sample rate conversion in multi-track recording equipment, processing audio materials with different sample rates in audio workstations, achieving audio signal format unification in mixing console systems
-
Broadcasting and Television
Real-time processing of audio signals in broadcasting equipment, synchronized processing of audio from different sources in TV production, optimized conversion of audio signals in live streaming systems
-
Digital Audio Systems
Audio signal preprocessing in amplifier equipment, multi-channel signal conversion in audio processors, signal optimization in speaker management systems
-
Automotive Audio
Audio format conversion in in-vehicle entertainment systems, audio quality optimization in high-end audio systems, signal processing in noise reduction systems
-
Consumer Electronics
Audio signal processing in high-end audio equipment, multi-channel processing in home theater systems, signal conversion in professional audio interfaces
-
Industrial Applications
Signal standardization in audio testing equipment, data processing in audio analysis instruments, format conversion in professional signal processing equipment
Ordering Information¶
| Product Name | Product Model | Product Image |
|---|---|---|

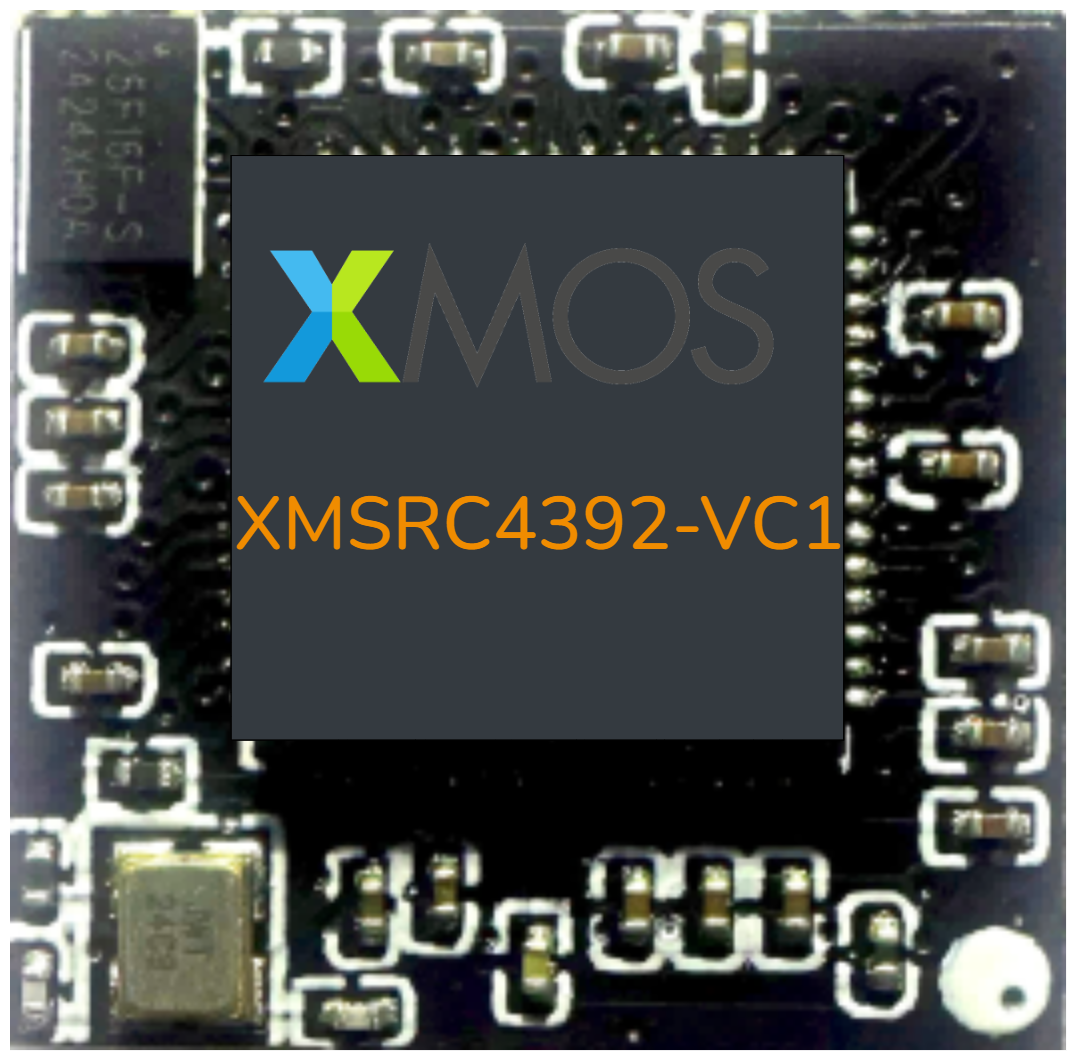

| 4-Channel 192KHz ASRC and 768KHz SSRC Audio Sample Rate Converter with Integrated S/PDIF Transceiver and 2-Way I2S Master/Slave Interface | XMSRC4392-VC1 |  |
Related Evaluation Boards¶
-
A316-HF-I2S-V1 Audio Sample Rate Conversion Evaluation Board
The development board exposes XU316 interfaces through pin headers, allowing independent evaluation of XMSRC4392_VC1 performance
