XMSRC4194_VC1¶
4-Channel 192KHz ASRC Audio Sample Rate Converter with 2x S/PDIF and 2x I2S Interfaces and TDM Cascade Mode
XMSRC4194 is a high-performance 4-channel asynchronous sample rate converter based on XMOS chip architecture. This product is fully compatible with the core functional specifications of SRC4194, including 16:1 to 1:16 wide-range sample rate conversion, 144dB dynamic range, and comprehensive support for multiple digital audio formats such as I2S, Left-justified, Right-justified, and TDM.
- Compared to SRC4194, the core advantage of XMSRC4194 is the integration of two additional S/PDIF input interfaces, providing users with more flexible signal source selection. Users can flexibly switch between I2S input and S/PDIF input according to application requirements, significantly enhancing system connectivity and adaptability.
- The XMOS chip architecture ensures high reliability and excellent audio processing performance, providing professional audio equipment manufacturers with a more competitive solution choice.
- Dual SRC module architecture, with each module processing 2 audio channels, capable of independent operation, supporting a total of 4-channel audio sample rate conversion simultaneously.
XMSRC4194_VC1 Product Brief XMSRC4194_VC1 Datasheet
Purchase Samples
Features and Specifications¶
- Four-channel SRC audio sample rate conversion
- Dual SRC module architecture (SRC_A + SRC_B), each module processes 2 audio channels
- Capable of independent operation, supporting a total of 4-channel audio sample rate conversion simultaneously
- Ultra-high sample rate conversion support
- ASRC supports sample rate conversion between 44.1KHz-192KHz
- Supports 16:1 to 1:16 wide-range input/output sample rate ratio
- Multi-interface support
- 2x S/PDIF input interfaces, 4x I2S master/slave interfaces
- Supports flexible switching between I2S and S/PDIF input sources
- S/PDIF interface compatible with AES3, IEC 60958, and EIAJ CP-1201
- Supports I2S, Left-Justified, Right-Justified formats
- Complete TDM time-division multiplexing format support, can cascade 4 devices
- Supports 16bit/24bit/32bit audio data processing
Normal Operating Conditions
| Function | Minimum | Typical | Maximum | Unit |
|---|---|---|---|---|
| Operating Temperature | 0 | - | 70 | ℃ |
| 3.3V Operating Voltage | 3.0 | 3.3 | 3.6 | V |
| 1.8V Operating Voltage | 1.62 | 1.80 | 1.98 | V |
| 0.9V Operating Voltage | 0.855 | 0.90 | 0.945 | V |
Product Dimensions 13±0.1mm(L)X13±0.1mm(W)X0.8±0.1mm(H)
Documentation and Tools¶
| Type | Title | Download |
|---|---|---|
| Product Datasheet | XMSRC4194-VC1 Datasheet | [] |
| Reference Design | [] | |
| Application Manual | [] |
| Type | Description | Download |
|---|---|---|
| Debug Tool | Debug Tools | |
| Configuration Software | Configuration Tools |
Feature Comparison¶
| Feature | XMSRC4194 | SRC4194 | Advantage |
|---|---|---|---|
| SRC Channels | 4 channels | 4 channels | Same processing capability |
| SRC Modules | 2 independent modules | 2 modules | 2x processing capability |
| S/PDIF Input | 2 channels | Not supported | More input interfaces |
| Maximum Sample Rate (ASRC) | 192 KHz | 216 KHz | Comparable performance |
| External Clock Reference | No external clock required | Requires external clock | Saves external crystal cost |
| Scalability | Scalable | Non-scalable | More flexible |
Application Scenarios¶
-
Professional Recording Studio
Sample rate conversion needs for multi-track recording equipment, audio workstations, and mixing console systems
-
Broadcasting and Television
Audio signal processing in broadcasting equipment, television production, and live streaming systems
-
Digital Audio
Amplifier equipment, audio processors, speaker management systems
-
Automotive Audio
Audio processing for in-vehicle entertainment systems, high-end audio, and noise reduction systems
-
Consumer Electronics
High-end audio equipment, home theater, audio interface products
-
Industrial Applications
Test equipment, audio analysis instruments, signal processing systems
Ordering Information¶
| Product Name | Product Model | Product Image |
|---|---|---|

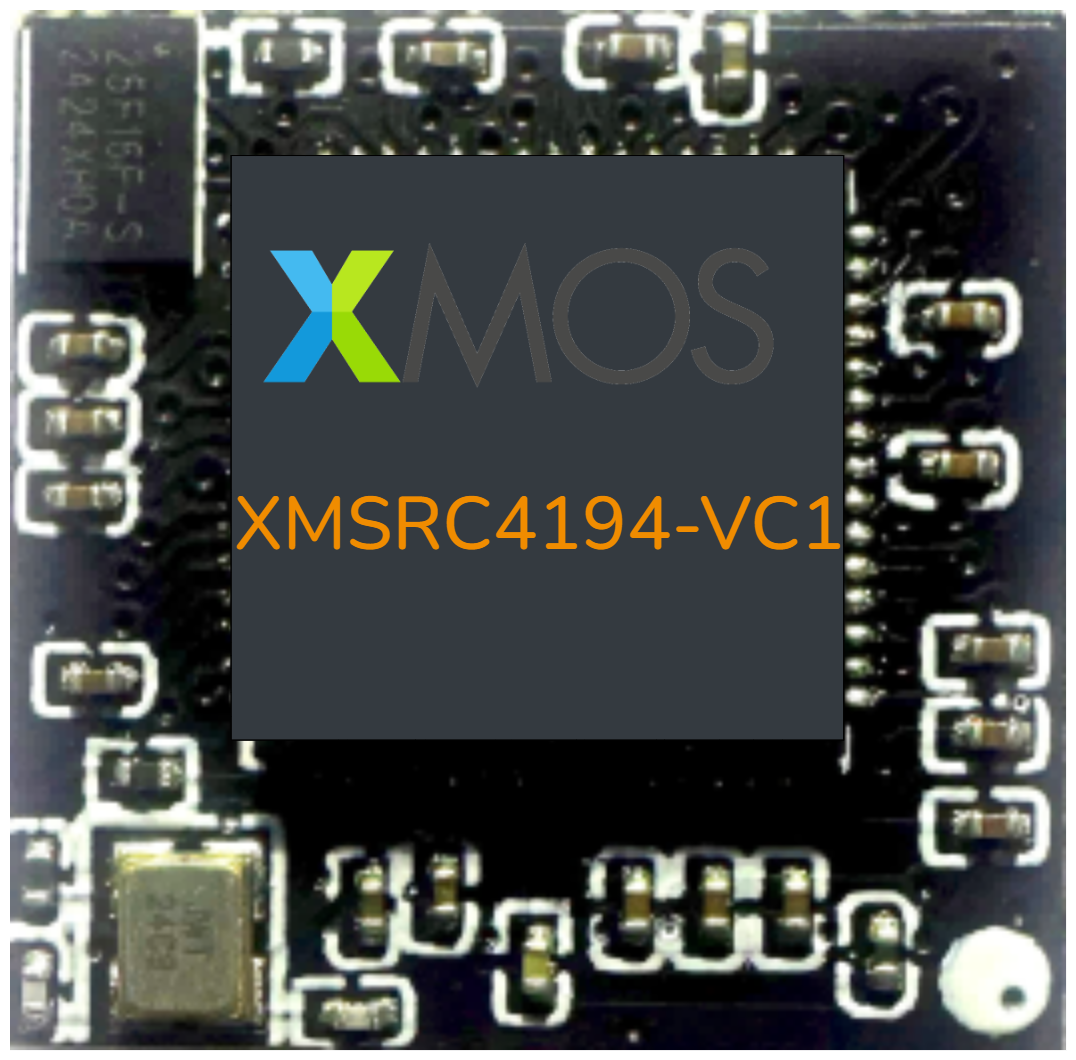

| 4-Channel 192KHz ASRC Audio Sample Rate Converter with 2x S/PDIF and 2x I2S Interfaces and TDM Cascade Mode | XMSRC4194-VC1 |  |
Related Evaluation Boards¶
-
A316-HF-I2S-V1 Audio Sample Rate Conversion Evaluation Board
The evaluation board exposes the XU316 interfaces through pin headers, allowing independent evaluation of XMSRC4392_VC1 performance
