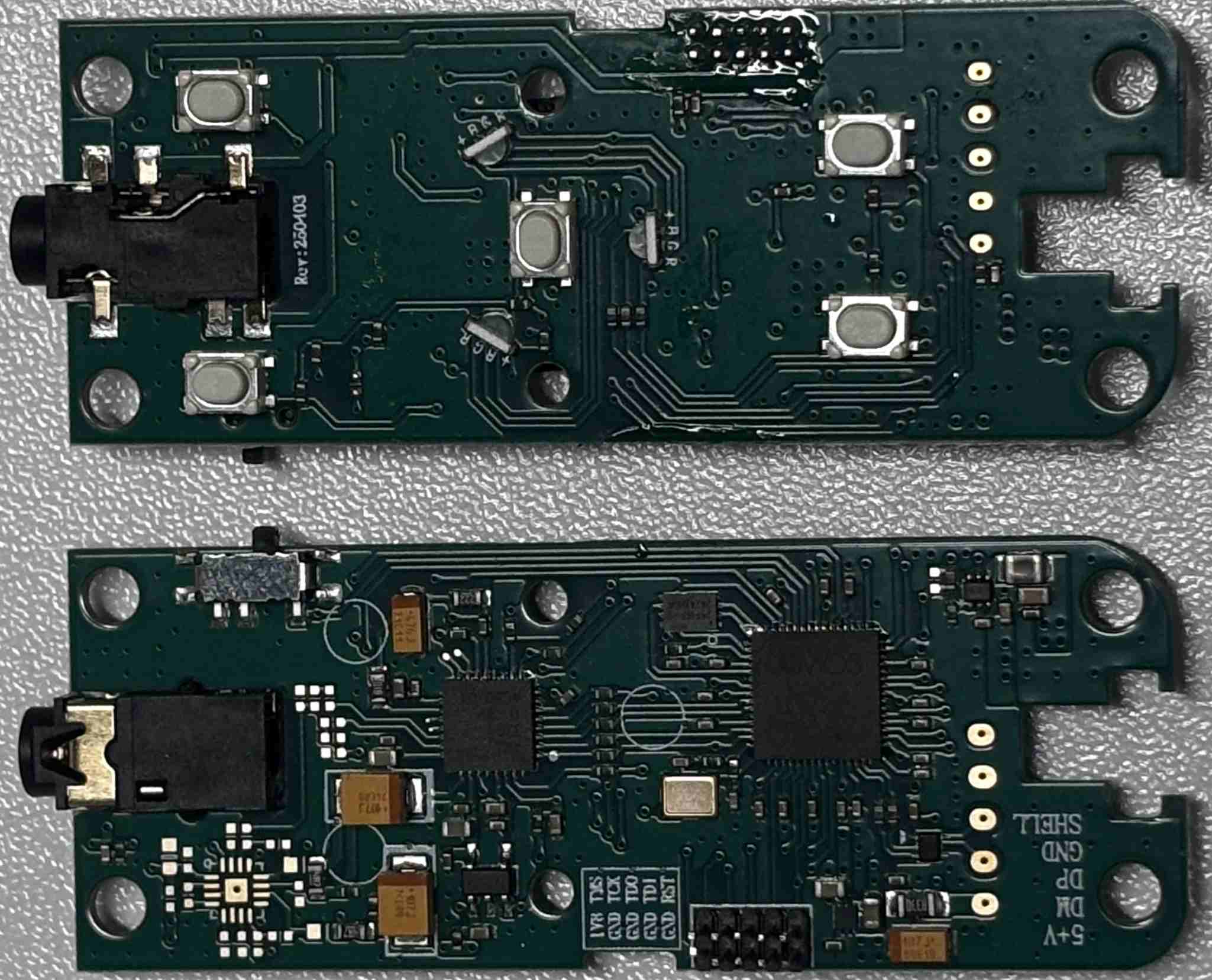

A316-V71-Game-V1¶
Virtual 7.1 Gaming Sound Card Evaluation Board
- A316-V71-Game-V1 is a professional gaming audio evaluation board based on the A316-Mini-V1 module design, specifically developed for the gaming market, supporting PCM 48KHz/16bit format
- Built-in advanced SA virtual 7.1 algorithm that synthesizes 7.1 channels into 2-channel output through human ear-optimized algorithms, providing 360-degree surround sound and sound positioning effects
- Integrated AI DNR deep learning noise reduction technology with 50ms low latency, perfectly removing keyboard, mouse, and various other non-stationary noises while preserving voice
- Supports USB Audio Class 1.0 interface, providing USB input to I²S output transmission functionality, while also supporting I²S input to USB output bidirectional transmission
- Compatible with multiple operating systems including Windows, Linux, Android, macOS, and iOS, as well as gaming consoles like PS5 and SWITCH
- Supports 48KHz/16bit PCM audio format, optimized for gaming scenarios
- SA virtual 7.1 algorithm providing 360-degree surround sound and sound positioning effects
- AI DNR deep learning noise reduction technology with 50ms low latency, intelligently eliminating environmental noise
- FPS gaming enhancement mode, strengthening footsteps and gunshot sounds and other critical audio effects
- Supports bidirectional audio transmission (playback and recording)
- Compatible with UAC 1.0 protocol, supporting multiple operating systems and gaming consoles
| Type | Title | Download |
|---|---|---|
| Instructions for Use | GM68311_VC1 48KHz/16bit Virtual 7.1 Gaming Sound Card Instructions for Use |
- Length: 65mm
- Width: 24mm
Application Scenarios¶
-
Gaming Headset
Audio processing solution designed specifically for gamers, providing immersive surround sound experience and clear communication quality
-
Gaming Microphone
Gaming microphone solution with integrated AI noise reduction technology, ensuring clear communication during gaming
-
Gaming Sound Card
Professional gaming audio processing sound card supporting virtual 7.1 surround sound and FPS gaming enhancement
-
E-sports Audio Equipment
High-performance audio processing equipment for e-sports competitions and professional gamers
Technical Specifications¶
| Item | Specification |
|---|---|
| Audio Format | PCM 48KHz/16bit |
| Virtual 7.1 Algorithm | SA virtual 7.1 algorithm, 360-degree surround sound |
| AI Noise Reduction Technology | AI DNR deep learning noise reduction, 50ms latency, maximum 35dB noise reduction |
| Gaming Modes | No effects mode, FPS mode, Virtual 7.1 mode |
| Noise Reduction Modes | No noise reduction, AI DNR noise reduction |
| Interface Support | USB Audio Class 1.0, I²S master mode |
| Codec Support | TLV320AIC3204 |
| Operating Voltage | 3.3V/1.8V/0.9V |
| Operating Temperature | -20℃ ~ 85℃ |
| Dimensions | 65mm x 24mm |
Functional Features¶
Audio Effects Processing¶
- SA Virtual 7.1 Algorithm: Converts 7.1 channels to 2-channel output through special algorithms, optimized for human ears, providing 360-degree surround sound and sound positioning effects
- FPS Gaming Enhancement Mode: Optimized for first-person shooter games, providing more precise spatial directional awareness, strengthening footsteps and gunshot sounds and other critical audio effects
- No Effects Mode: Audio signals bypass all effects processing, maintaining original audio output
Noise Reduction Features¶
- AI DNR Deep Learning Noise Reduction Technology: Deep learning-based noise elimination model with 50ms low latency, perfectly removing keyboard, mouse, and various other non-stationary noises while preserving voice
- No Noise Reduction Mode: Disables AI noise reduction function, maintaining original microphone input signal
Control Features¶
- Mode Toggle Button: Single press to switch audio effects mode, long press to switch noise reduction mode
- Volume Control: Supports microphone volume and playback volume adjustment
- LED Indicator: Displays current audio effects mode and noise reduction mode status
- Mute Function: Supports microphone mute control
