FTXU316_LA_7MIC_V1 7-MIC Seamless Local Sound Amplification PCBA Set

1. Product Introduction

1.1 Product Description

High-quality sound transmission is crucial in public speaking, business meetings, and educational environments. The FTXU316_LA_7MIC_V1 is designed to meet the demands of these scenarios by providing speakers with a constraint-free amplification experience while ensuring a clear, low-latency auditory experience for the audience.

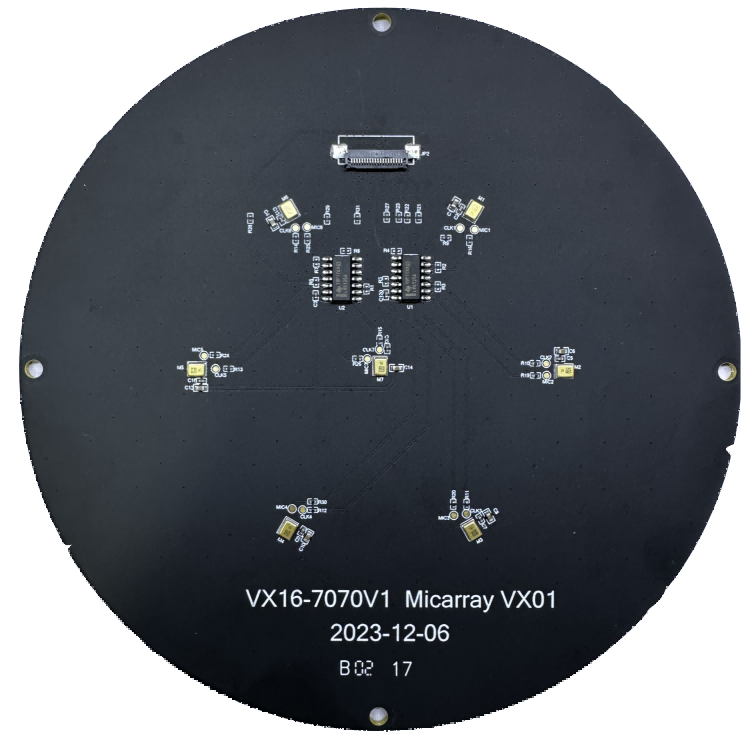

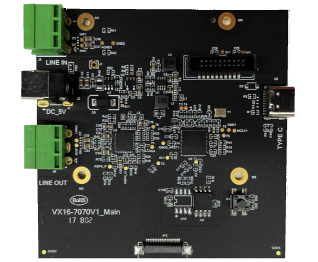

  • FTXU316_LA_7MIC_V1 Main Board FTXU316_LA_7MIC_V1 Microphone Array Board

1.2 Product Features

  • 7-MIC Array Technology: 6+1 MIC array, with Beamforming technology for precise control of pickup direction, side-lobe suppression of up to 40dB, significantly reducing external noise interference.
  • Ultimate Audio Quality Processing: Processes human voice at a 32KHz/24bit sampling rate, ensuring highly faithful output within 8kHz frequency response.
  • Low Latency Experience: System latency from microphone input to Line-out output is only 15ms, providing a voluntary amplification experience for speakers and listeners.
  • Noise Reduction and Amplification: Built-in NS noise reduction and AFC algorithms, offering more than 10dB of amplification loudness.

1.3 Product Block Diagram

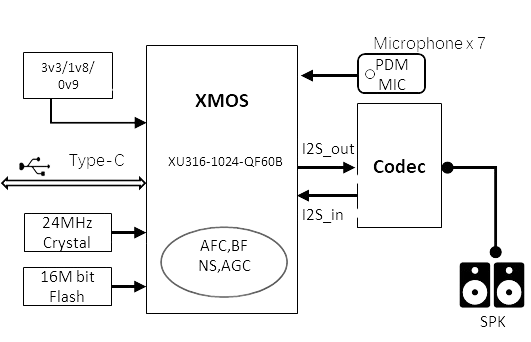

Product Block Diagram

1.4 Microphone Array Parameters

Parameter Minimum Maximum Unit
Pickup Radius 0 3 m
Frequency Response 100 10K Hz
Sampling Rate - 32 KHz
Microphone Sensitivity - -29 dB
Dynamic Range - 99 dB
BF Beamforming 20 180 °
Feedback Suppression 0 24 dB
Noise Suppression 0 25 dB
Side-lobe Suppression 0 40 dB

1.5 Audio System Parameters

Parameter Minimum Typical Maximum Unit
System Latency - 15 - ms
Amplification Loudness - 10 - dB
Automatic Amplification Gain Adjustment -20 - +20 dB
Rated Output Impedance - 16 - Ω

2. Product Technical Documentation

4. PCBA Kit Purchase:

Product Model Function Description Status Purchase
FTXU316_LA_7MIC_V1 Set 7MIC Seamless Local Amplification PCBA Set On Sale FTXU316_LA_7MIC_V1 Set
