PBAX316-90108MV1 USB Desktop High-Definition Audio Decoder Evaluation Board Test Specifications¶

1. USB INPUT 1KHz RCAOUT Test Specifications¶

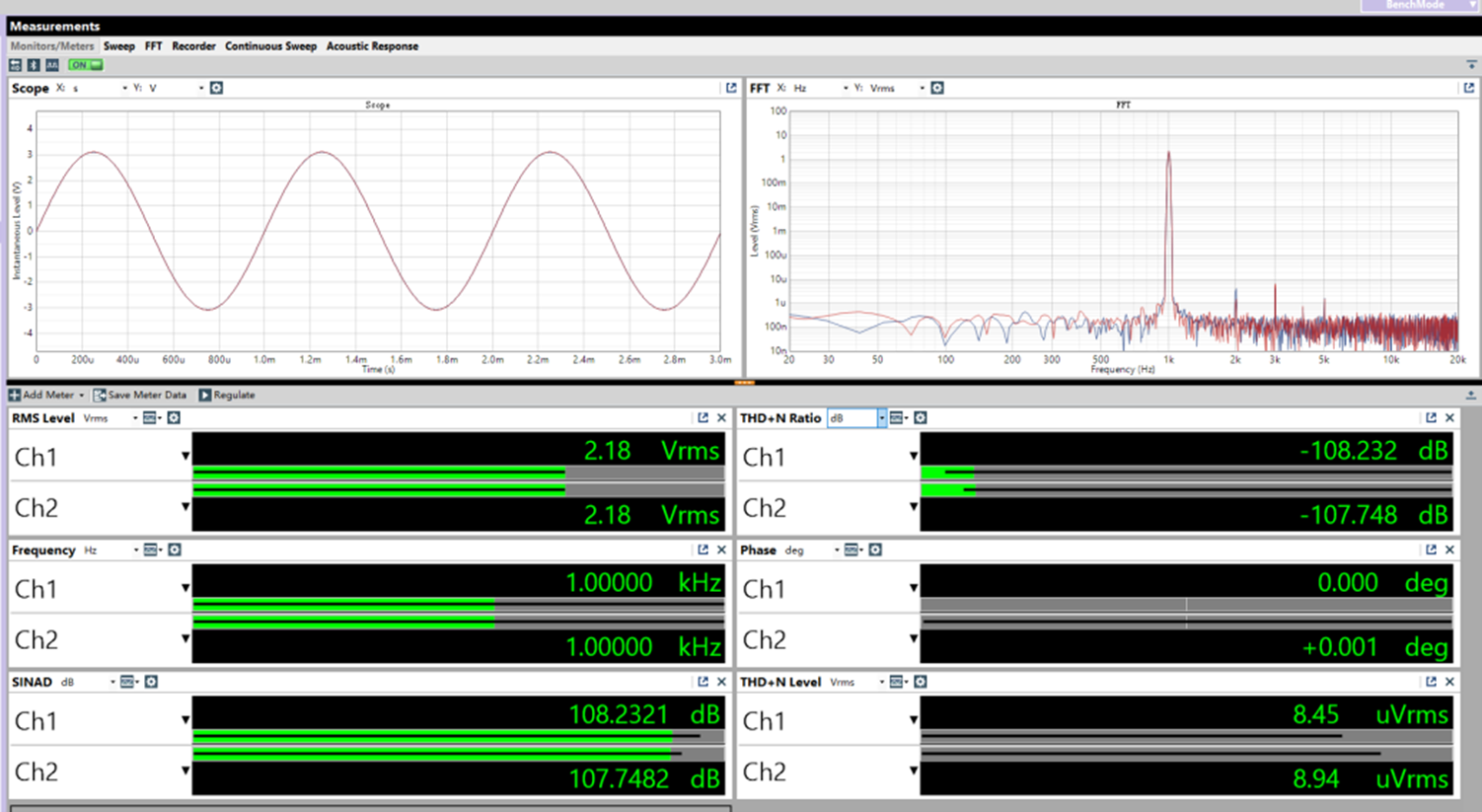

THD+N Ratio¶

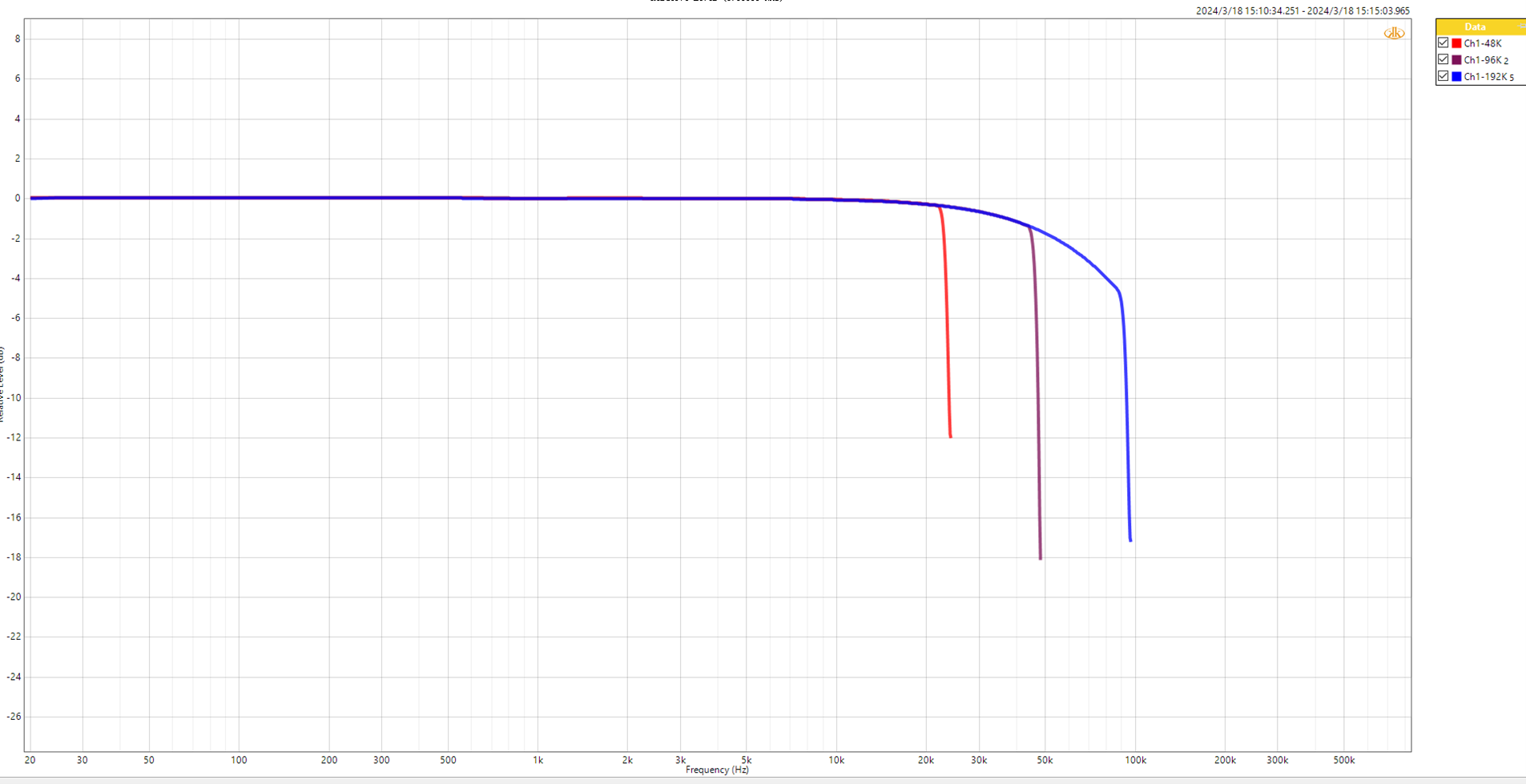

Frequency Response¶

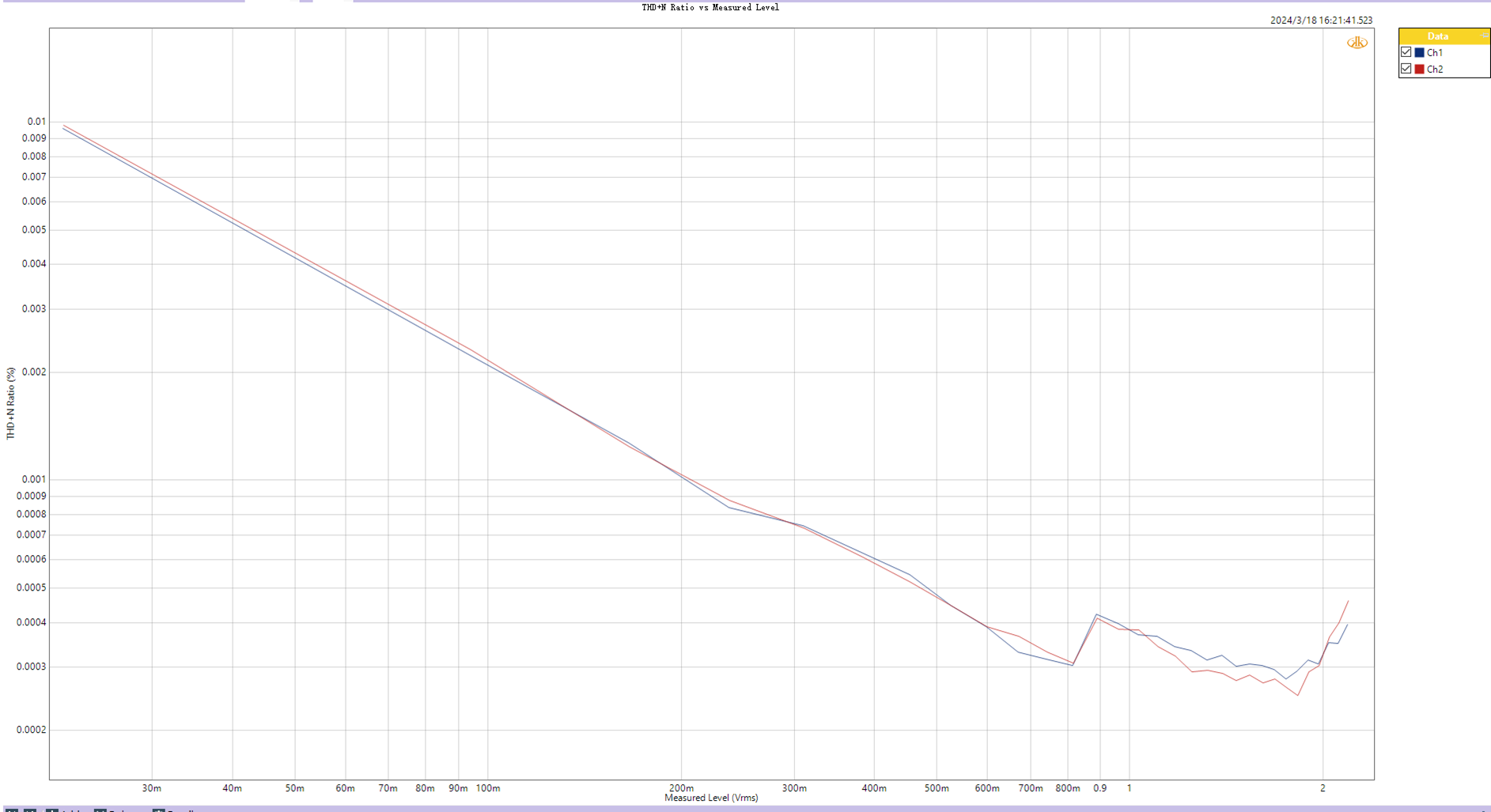

THD+N Level¶

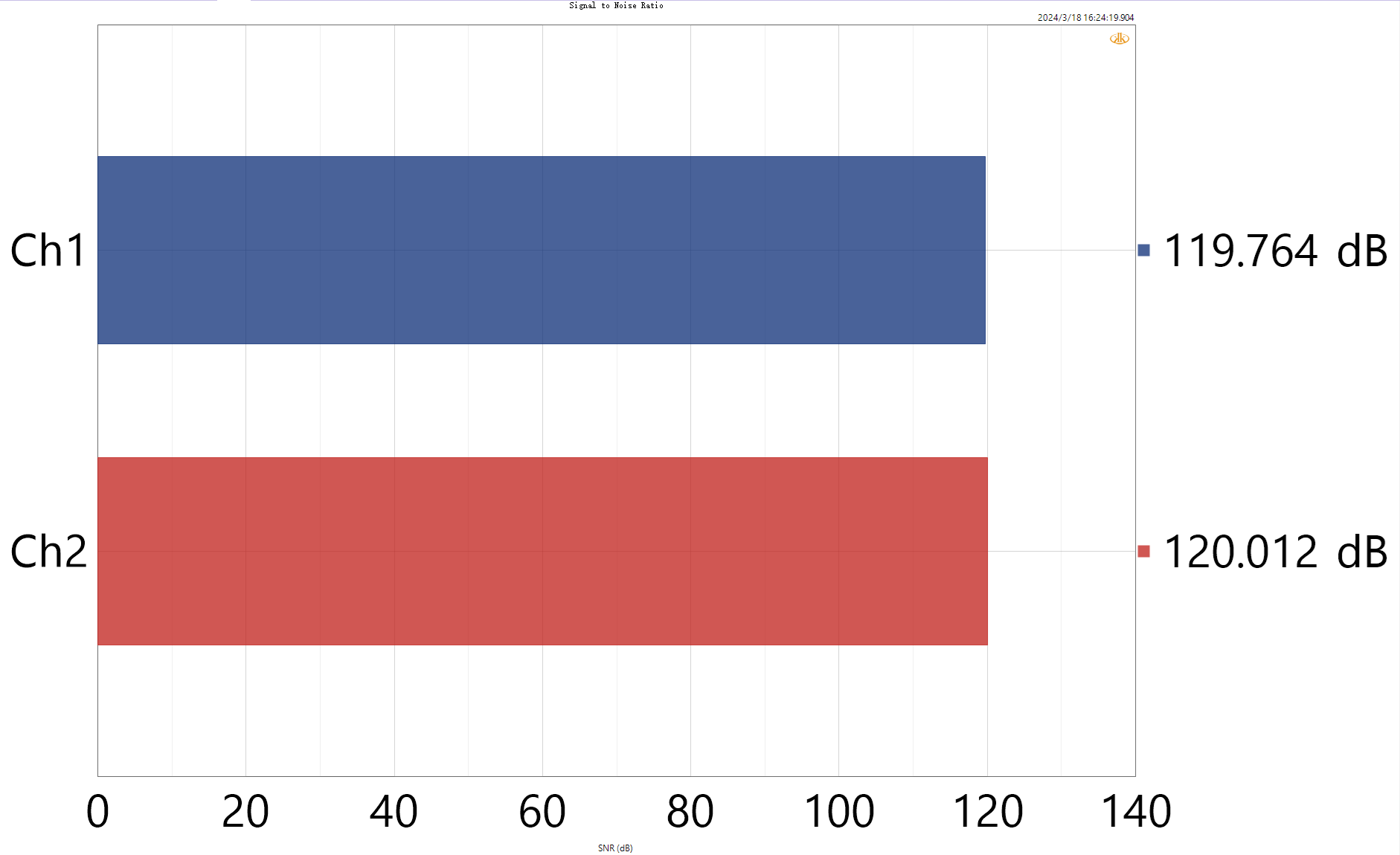

SNR¶

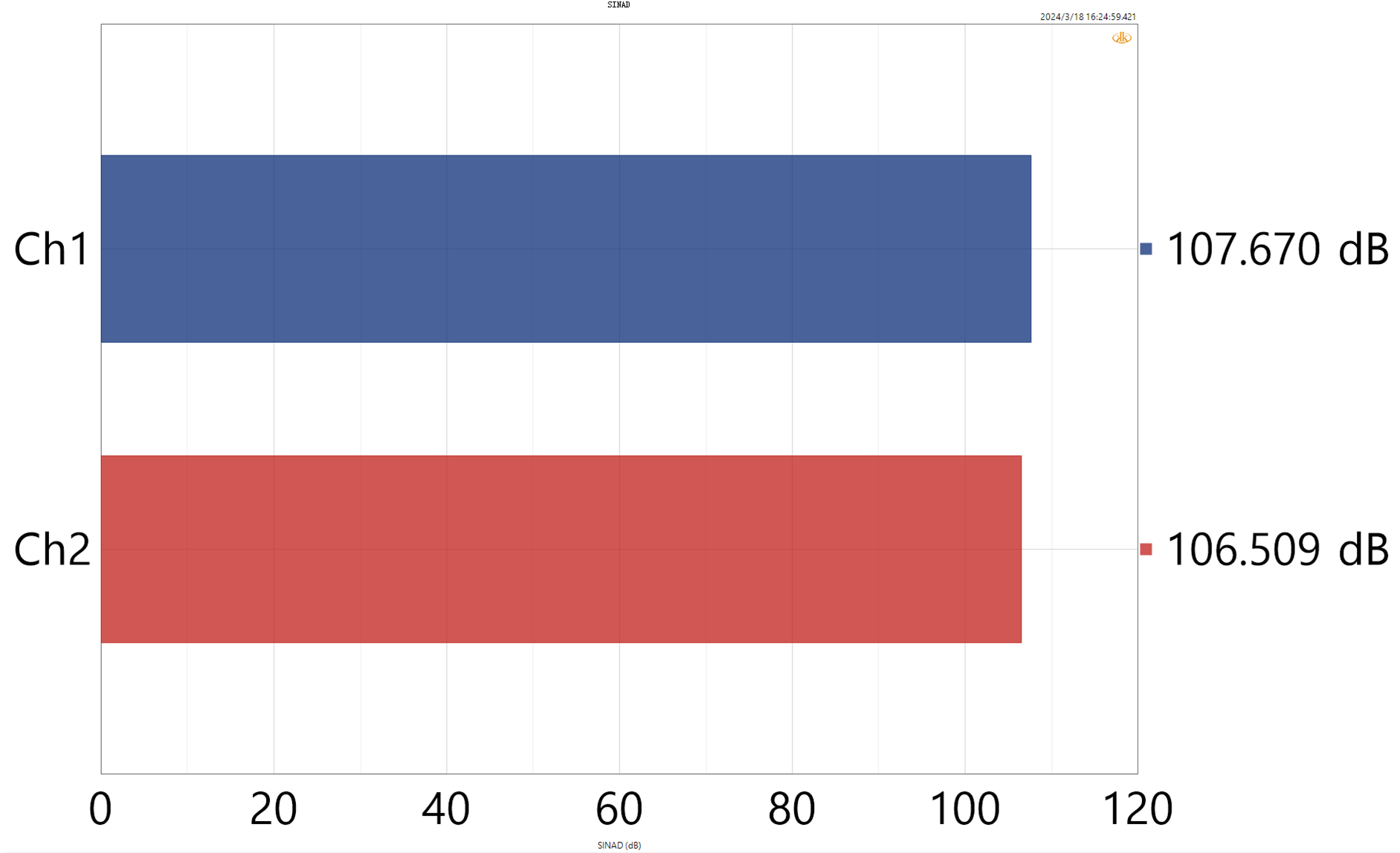

Signal-to-Noise and Distortion Ratio¶

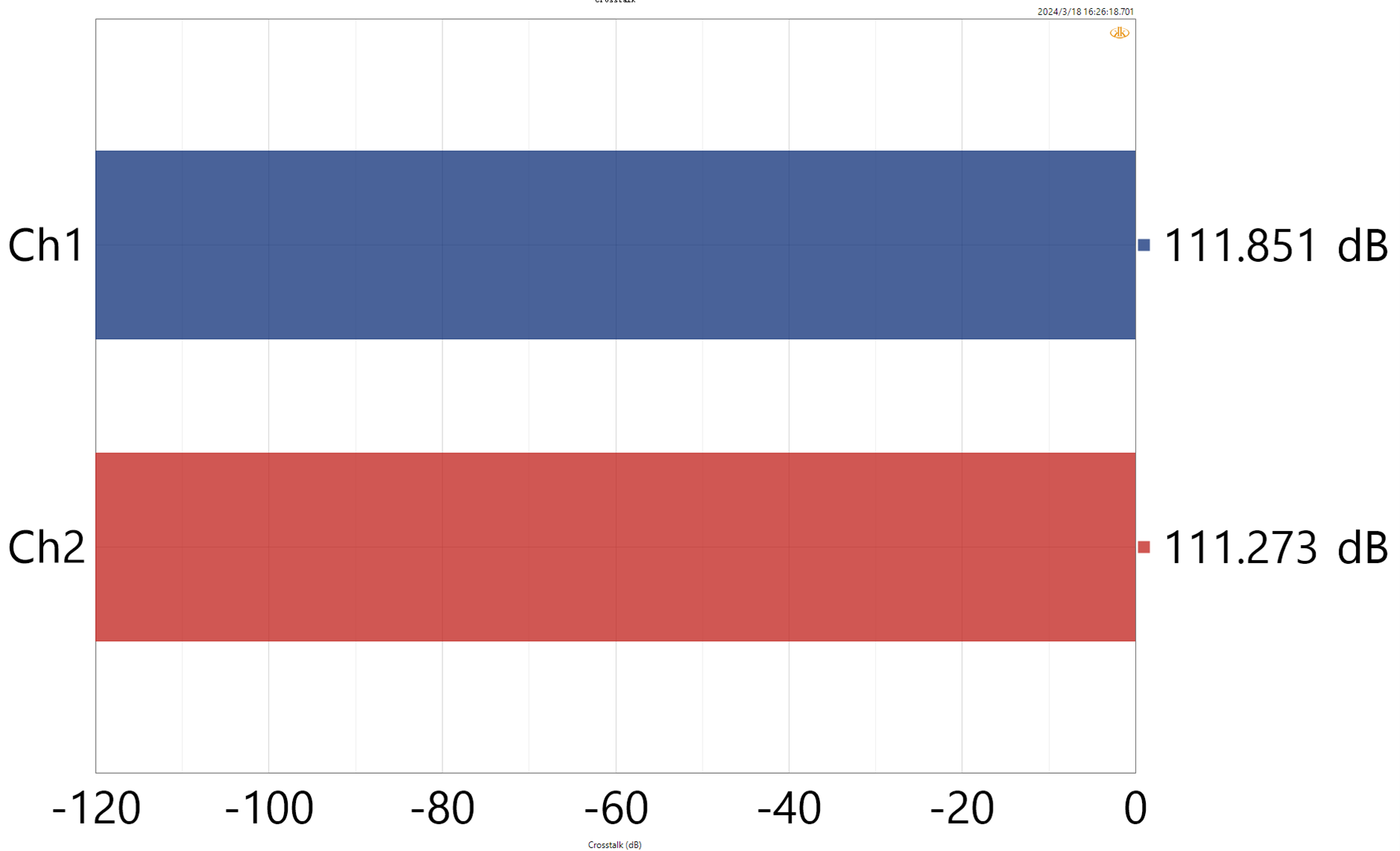

CROSSTALK¶

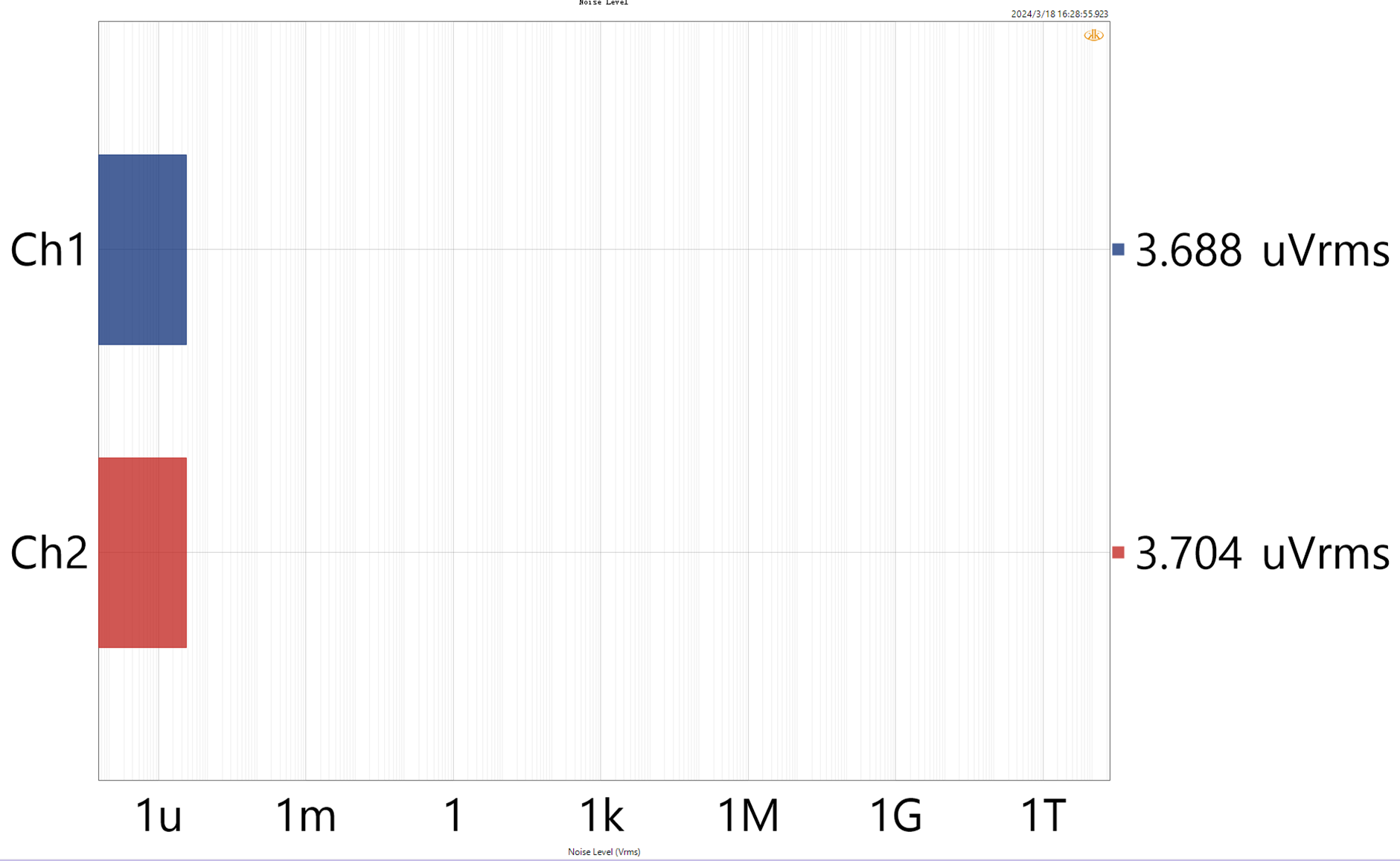

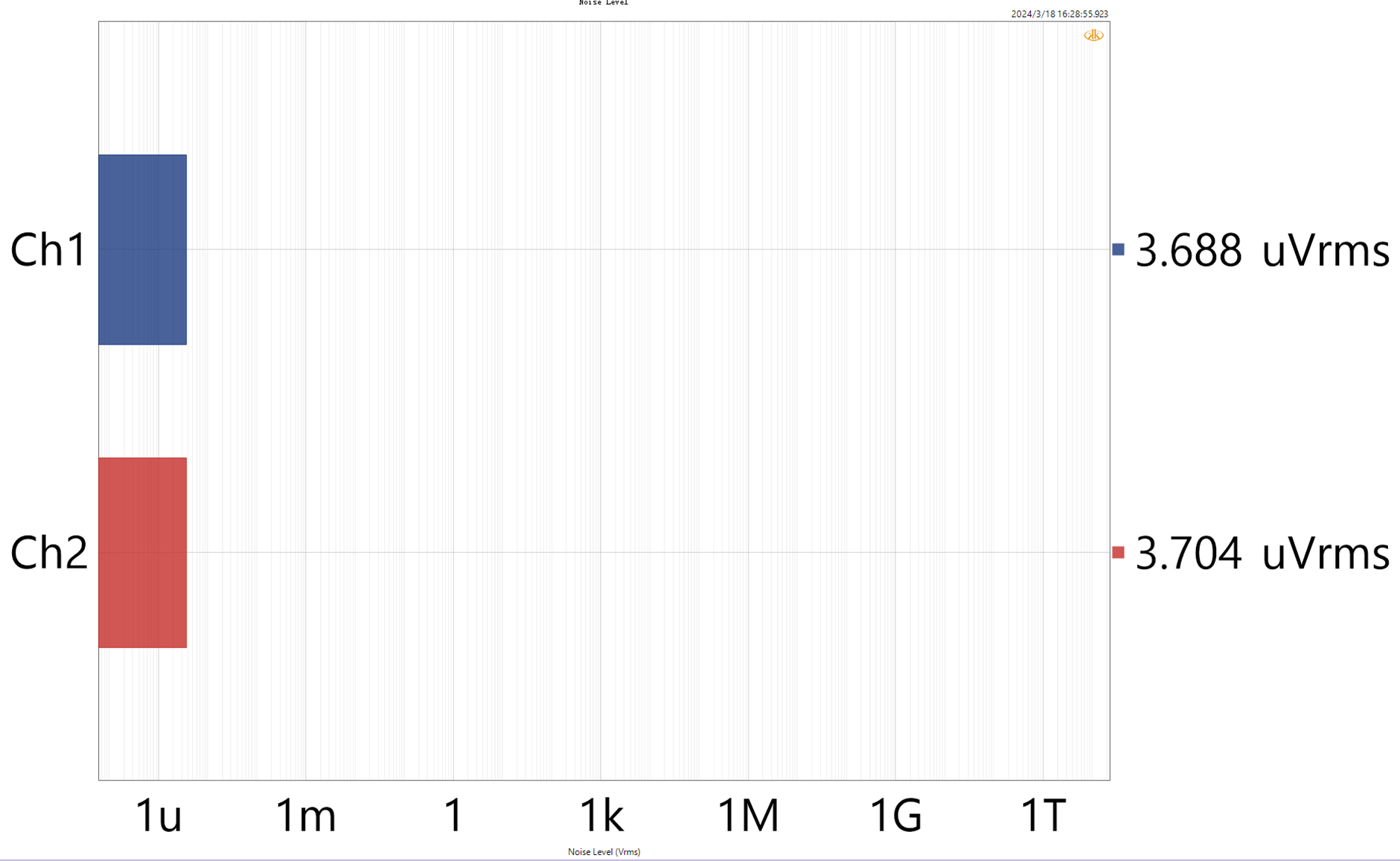

Noise Level¶

2. S/PDIF INPUT 1KHz RCAOUT Test Specifications¶

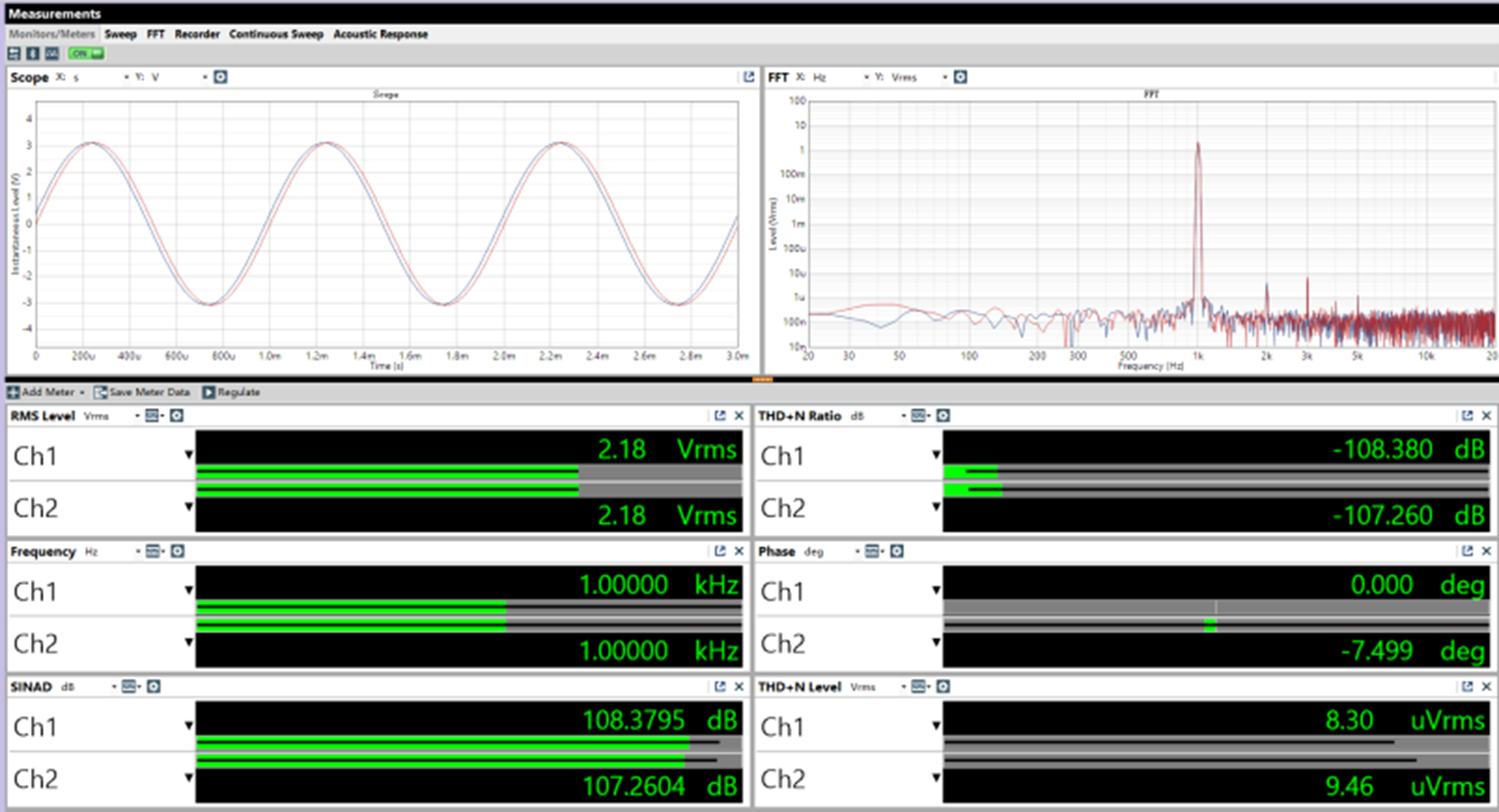

THD+N Ratio¶

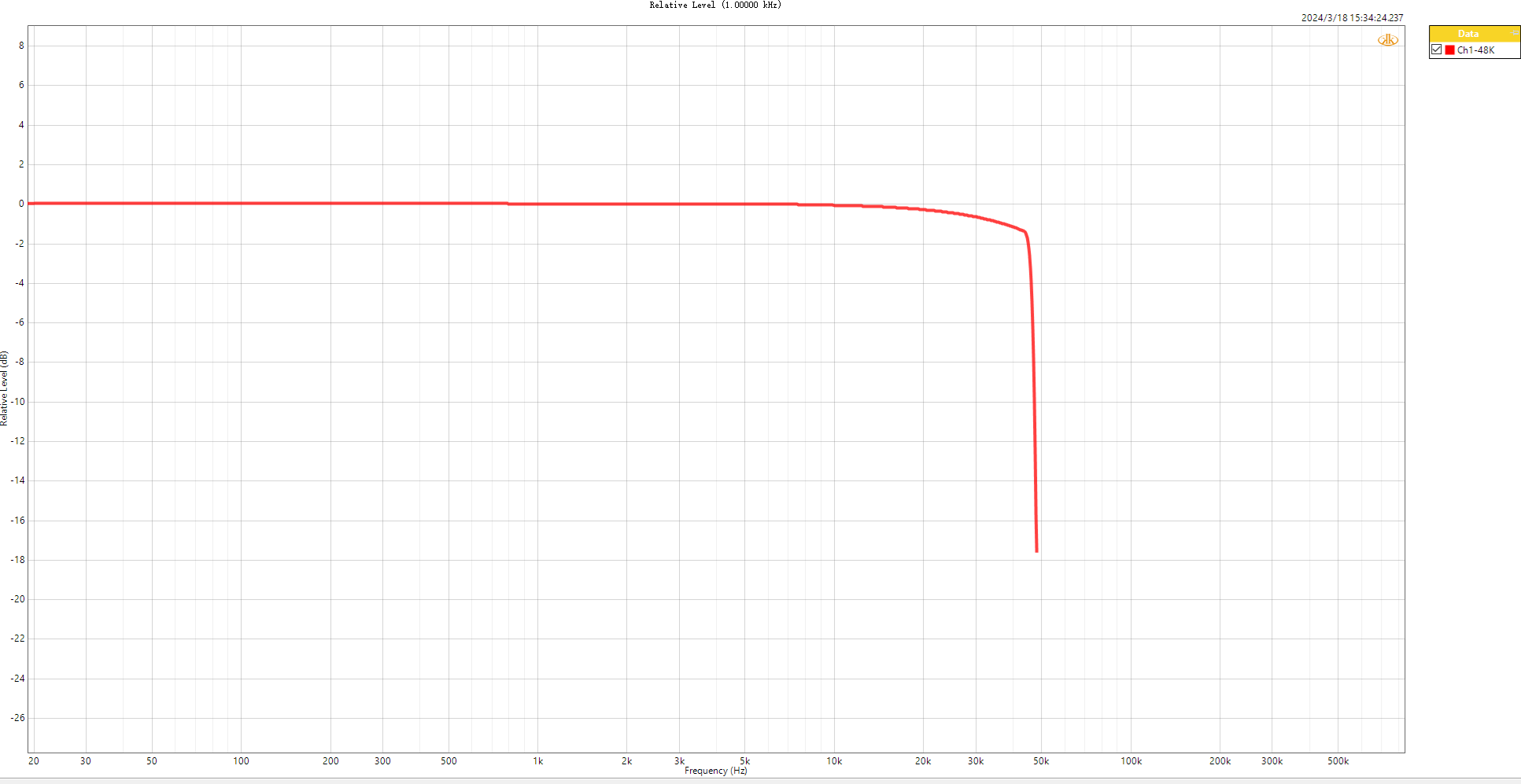

Frequency Response¶

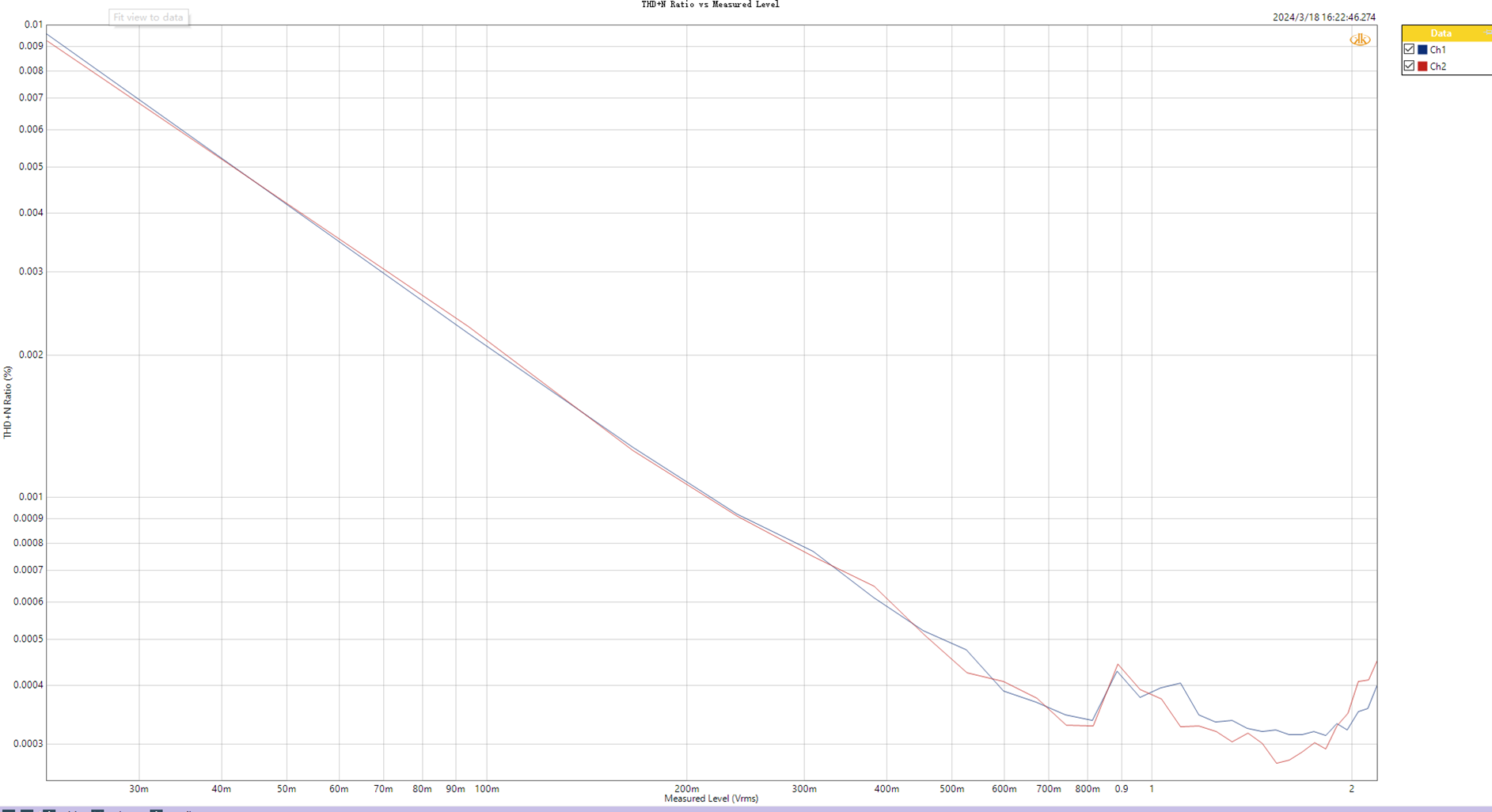

THD+N Level¶

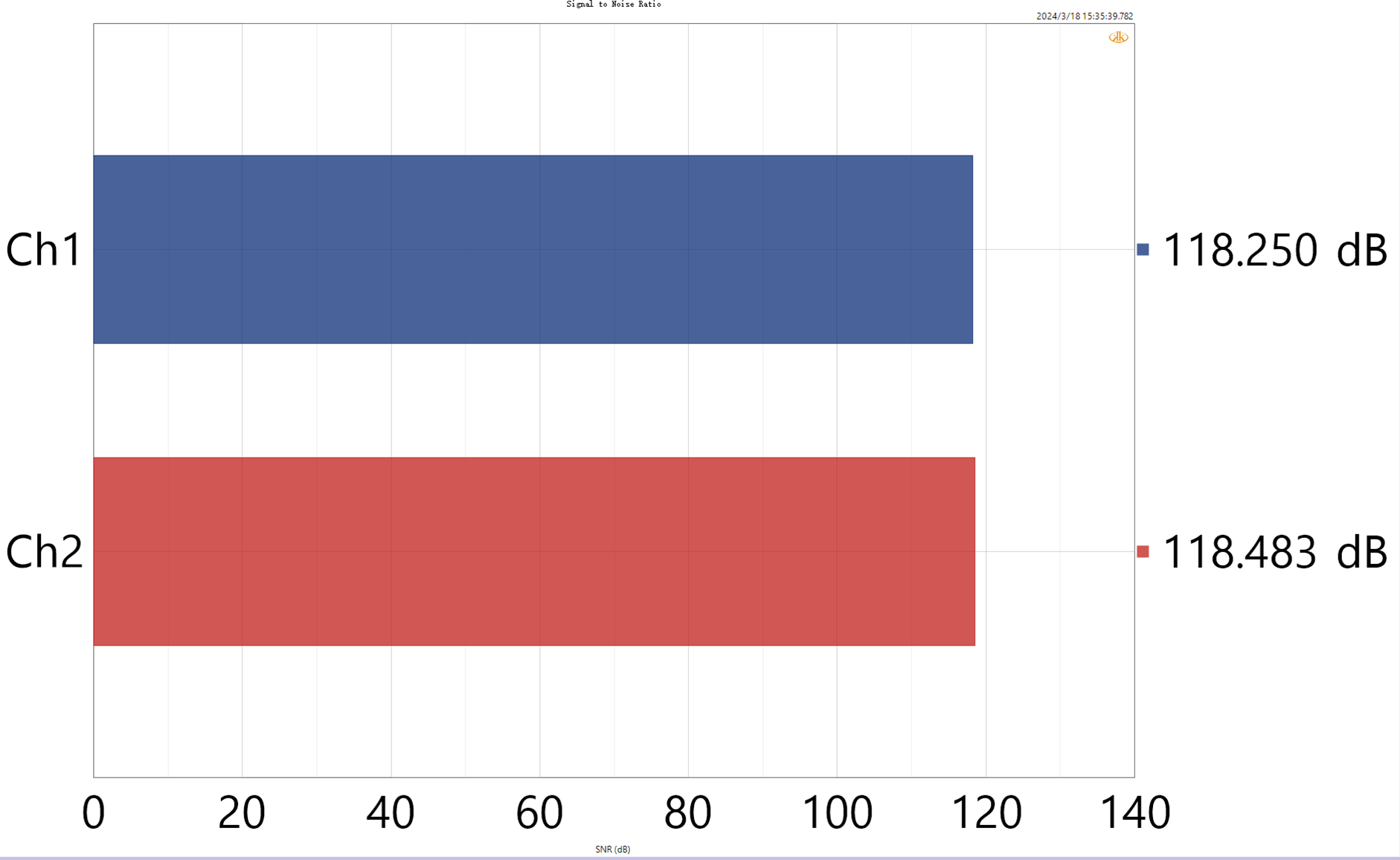

SNR¶

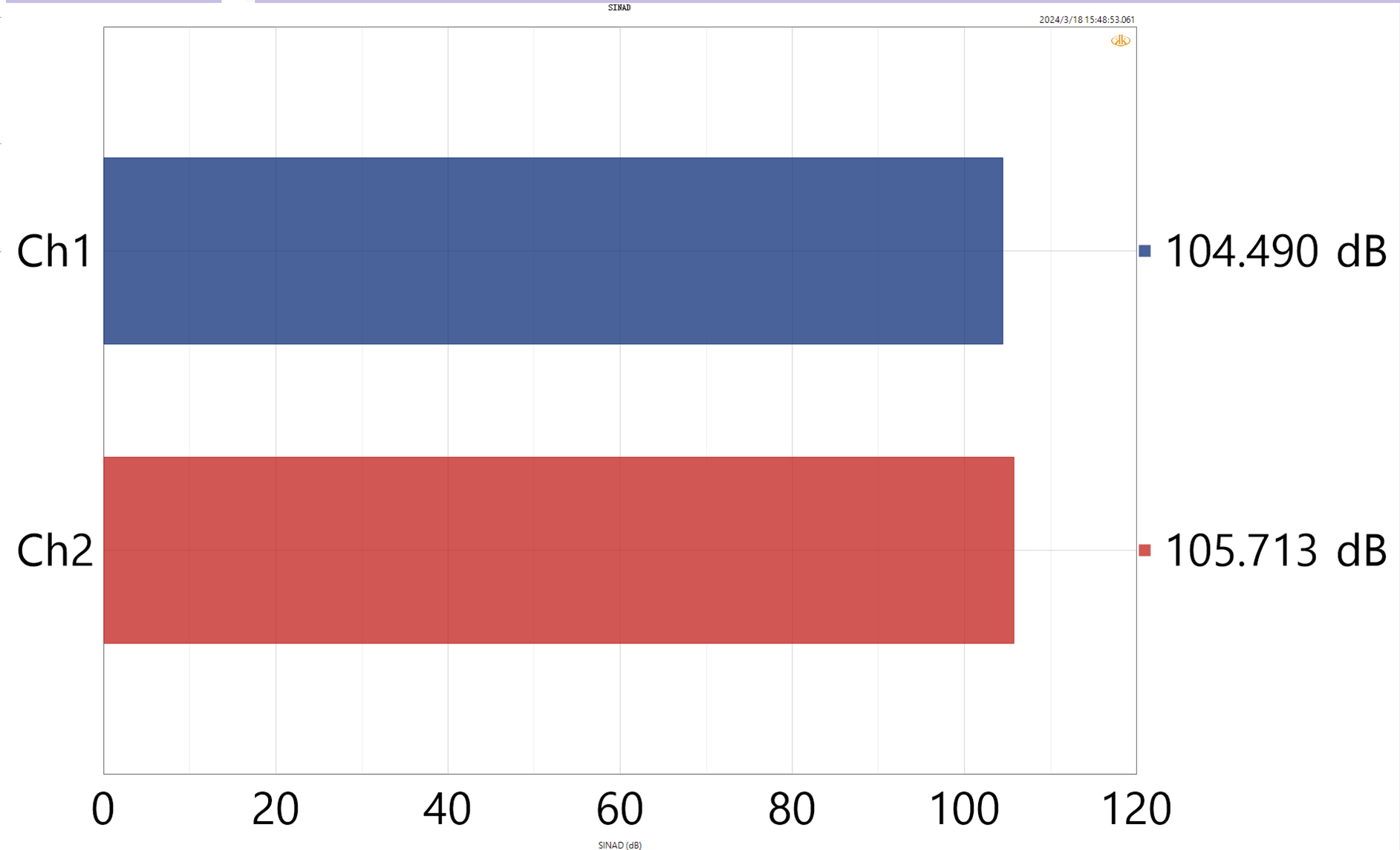

Signal-to-Noise and Distortion Ratio¶

CROSSTALK¶

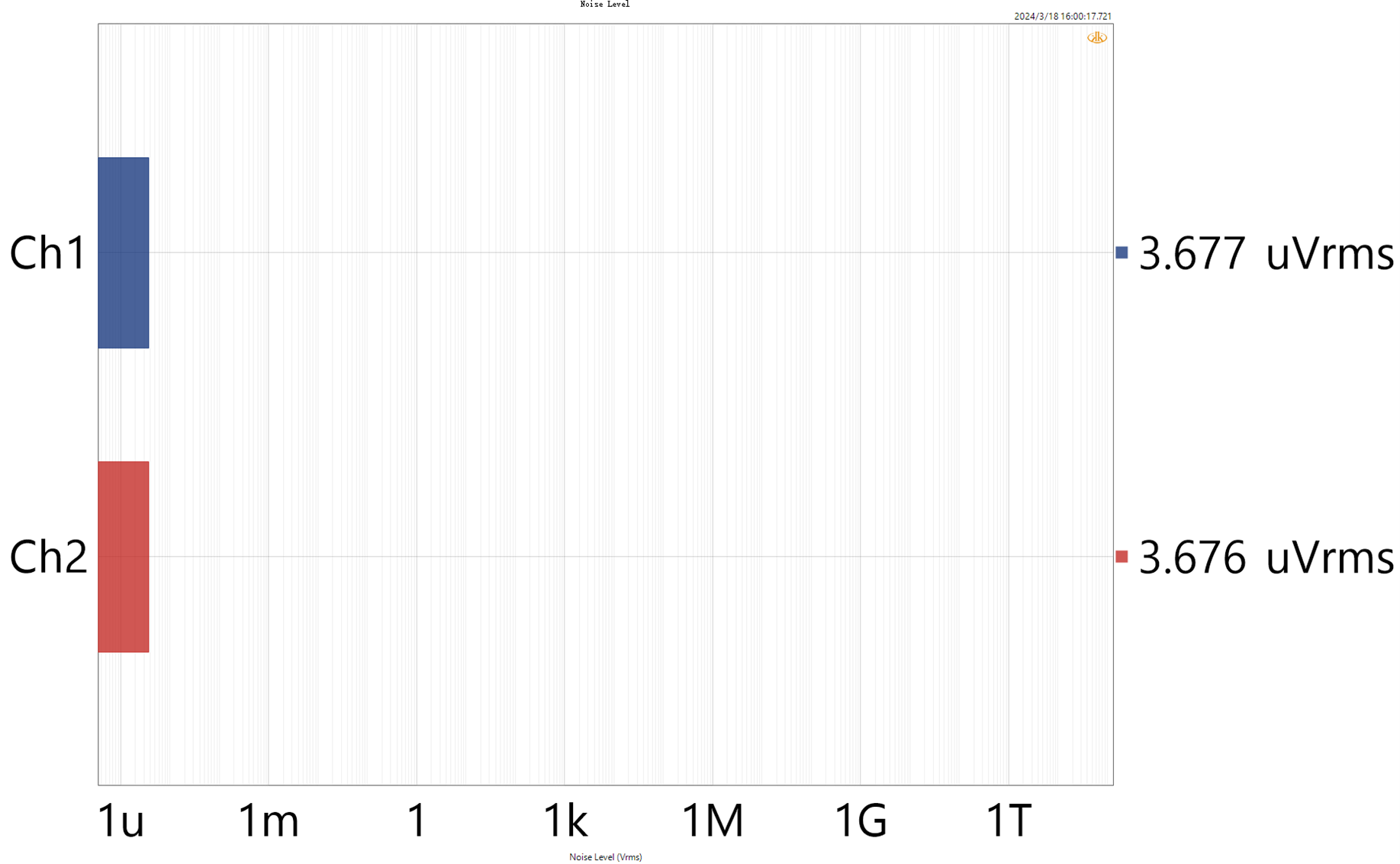

Noise Level¶
