FTXU316_LA_7MIC_V1 7MIC Seamless Local Amplification PCBA Product and Evaluation Kit Installation Guide¶
Interface Description¶

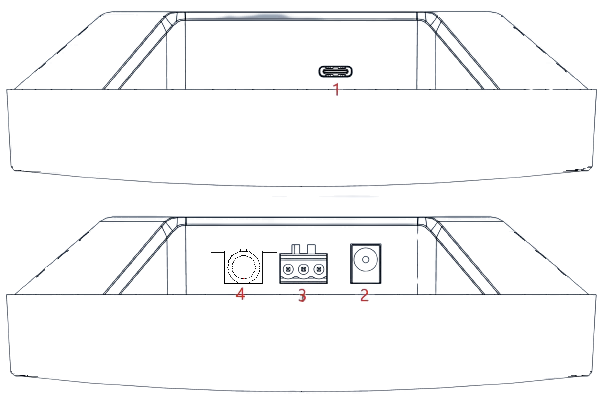

![7MIC Seamless Local Amplification PCBA Interface 7MIC Seamless Local Amplification PCBA Interface](/assets/images/7mic/product_mian_interface.png)
No. | Interface | Function Description |
---|---|---|
1 | USB-type C Interface | Connect the USB cable, 5V power supply. |
2 | Power Interface | Use a 5V/1A power adapter for power supply. |
3 | Audio Output Interface | Phoenix terminal audio output interface. |
4 | Audio Output Interface | 3.5mm audio output interface. |
Installation Guide¶
Installation Location¶
This product is an amplifying microphone with beamforming function. The installation location needs to meet the following conditions: 1. It needs to be suspended in the center of the speaker's activity range in the actual scenario. 2. The suspension height needs to be higher than the height of the speakers in the scene. 3. When suspending, keep the microphone's sound collection surface of the product facing the ground and keep the product parallel to the ground. 4. Direct the microphone's angle of sound collection towards the wall on the speaker's side.
Installation Reference Diagram¶

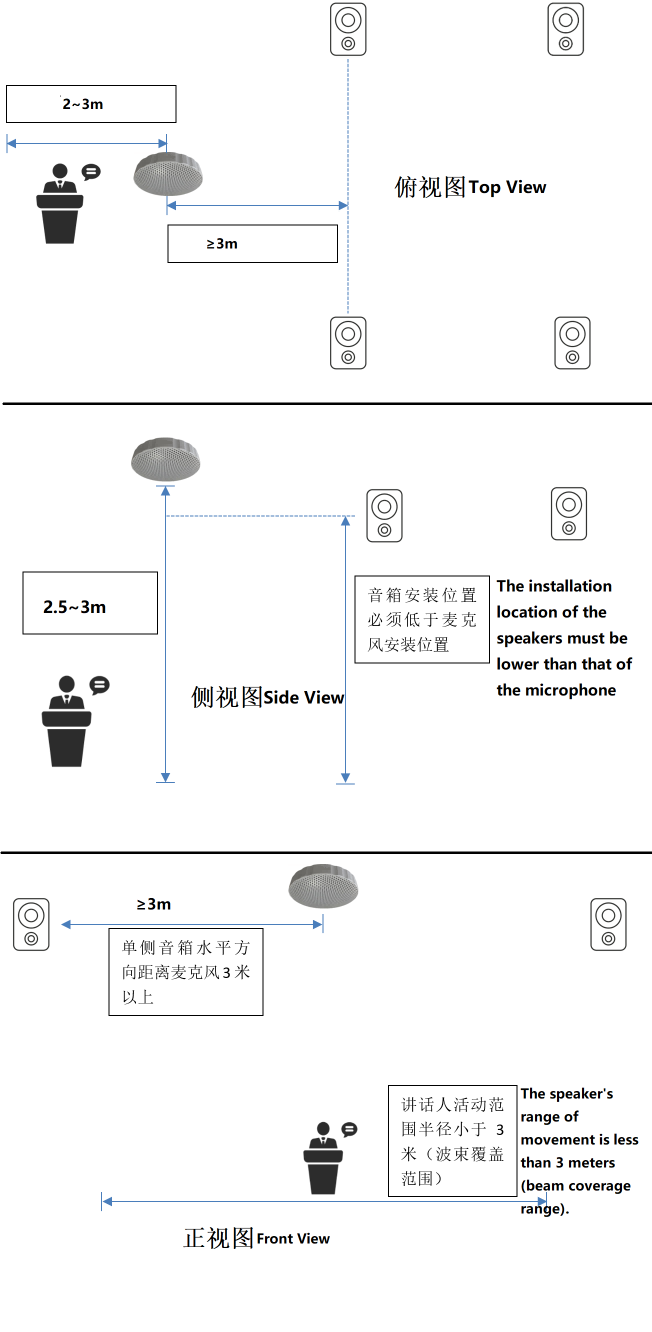

![7MIC Seamless Local Amplification Installation Reference Diagram 7MIC Seamless Local Amplification Installation Reference Diagram](/assets/images/7mic/7mic_setup.png)
